Virtualizor supports Central Management of many Nodes / Servers so that you can access and create VPS from the Master server only. Adding a server is very easy in Virtualizor. You can slave an EXISTING Virtualizor Server and deslave it any time. The master interacts with the slave only when necessary. The slave just becomes a extra resource for the master.
While creating Virtual Servers, its obvious that the server will require the OS templates OR ISO files to create a VPS, whether its Slave or the Master server. In the central management system, ALL OS Templates and ISOs must be there on the Master server. When a VPS is created on the slave and the OS Template is missing it will download it from the Master.
To add server on the master, we must get certain credentials from the slave server after Virtualizor is installed on it. To do so you must login into the Virtualizor Admin Panel of the slave and go to Configuration >> Server Info. Please take NOTE of the Servers Key Pass .

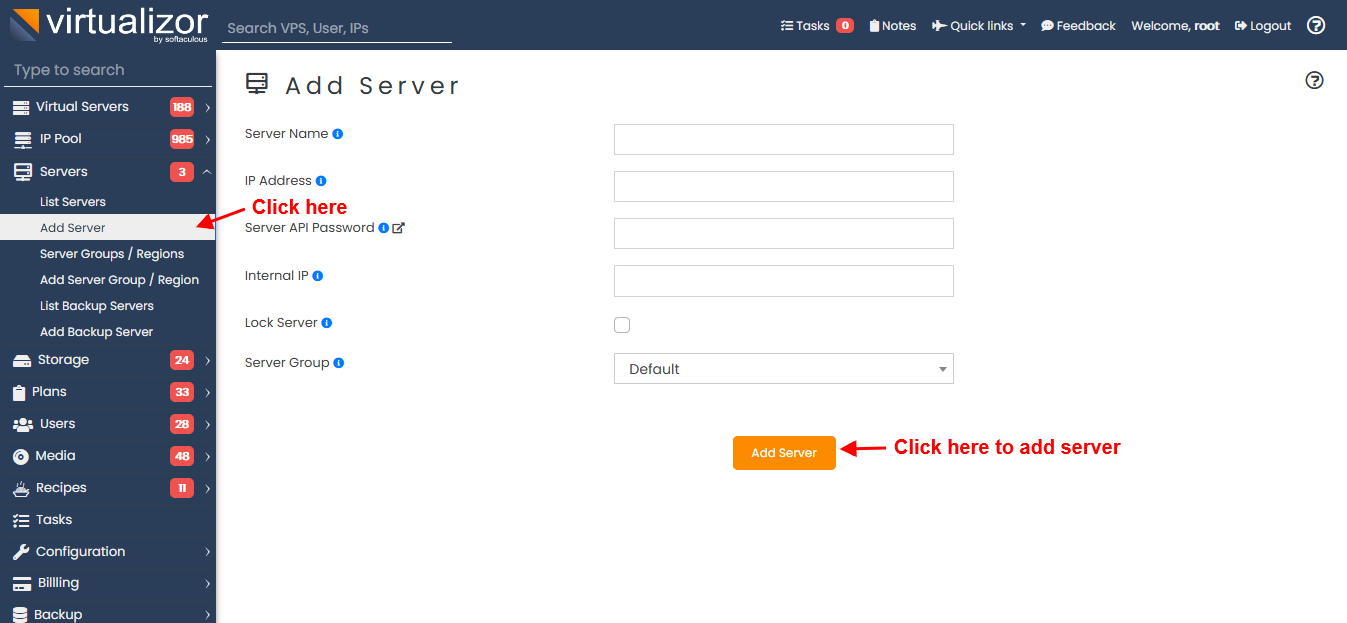

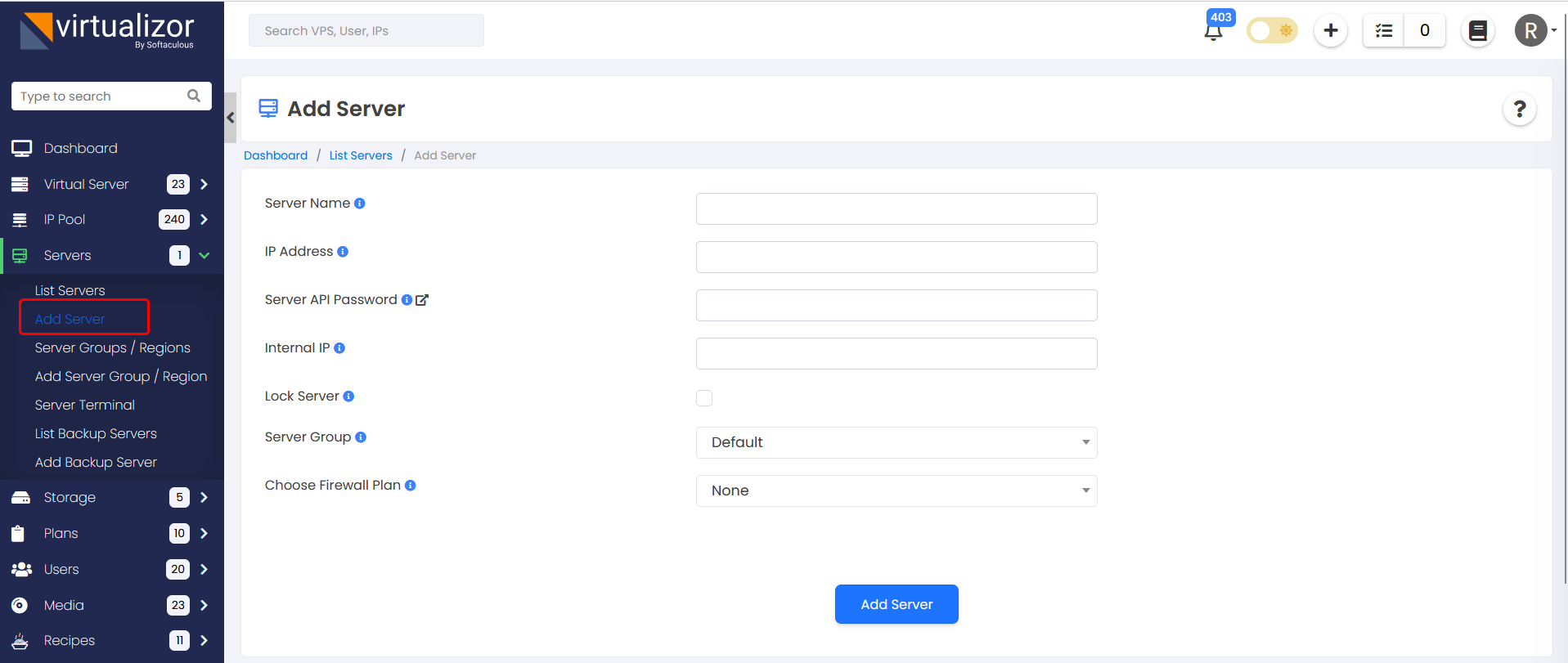

On the Master, go to Virtualizor Admin Panel, then click on Servers >> Add Server.
Server Name : The Logical name of the server.
IP Address : The IP address present on the server (ifconfig output, usually public one)
Server API password : Received from Previous step from the new server.
Internal IP (optional) : Internal IP already present on the server, reserved for internal communication.
Migration and OS template sync will be attempted initially over internal IP.
Lock Server (optional) : Lock the server for VPS creation.
You can even lock the server later on after adding the server.
Server Group (optional) : To add the server in any existing server group.
The master will communicate with the server and detect necessary details. If there is some CONFLICTS, the master will notify you of the same.
If everything is successful, it will add the server.
Troubleshooting
1. While adding the server if it gives curl call error then check if firewall is blocking 4085/4083 ports on your servers.
If not then you can test connection between them using curl.
curl -vk “https://server-ip:4085”
2. For other errors, check If there are a lot of IPs like in 10k or more in IP pool.
In that case, you can increase the memory limit in Configuration->slave settings->Memory Limit to 256 or 512 and check.
3. Make sure there are no 100s/1000s of duplicate plans/backup plans/storages present on slave server
(That would usually happen when the slave was forcefully removed from the cluster)
It will require to clean up before adding the server again.
If you still need any help, please contact us and we will help you.
