IPv6 Subnets

Overview

Virtualizor makes it possible to make and assign IPv6 Subnets to VMs e.g. You can break a /64 IPv6 subnet (assigned to your dedicated server) into multiple /112 subnets and assign them to the VMs. This guide shows you how to create IPv6 subnets in VMs.

Create IP Pool

In order to create IPv6 Subnets you need to have an IPv6 IP Pool.

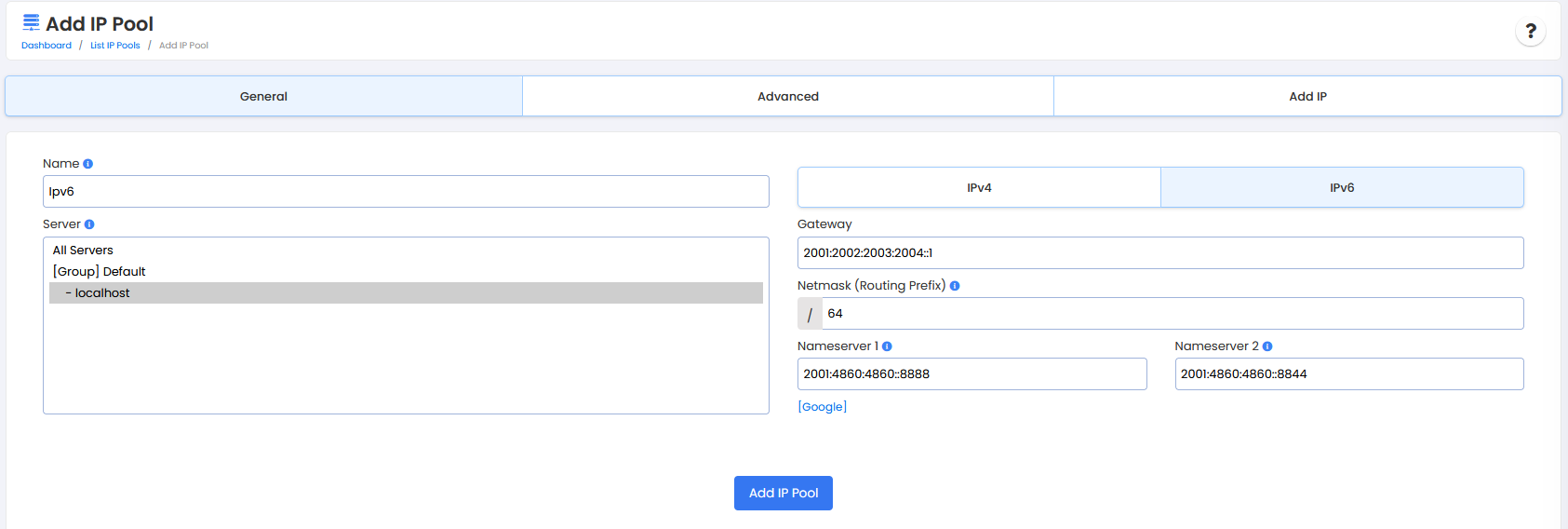

Here is a screenshot of the IPv6 IP Pool creation wizard :

Add IPv6 Subnets

Now that you have an IPv6 IP Pool, we can generate the subnets. To do so go to Virtualizor Admin Panel -> IP Pool -> Add IPv6 Subnets. Fill in the details accordingly and the following is a screenshot of the wizard :

Assign to VM

Once the IPv6 Subnets have been created you can assign them to the VMs while editing or creating a new VM.:

IPv6 Subnet CIDR Prefixes

2001:0db8:0123:4567:89ab:cdef:1234:5678
|||| |||| |||| |||| |||| |||| |||| ||||
|||| |||| |||| |||| |||| |||| |||| ||||     Single end-points and loopback
|||| |||| |||| |||| |||| |||| |||| |||128   Point-to-point links (inter-router)
|||| |||| |||| |||| |||| |||| |||| ||124
|||| |||| |||| |||| |||| |||| |||| |120
|||| |||| |||| |||| |||| |||| |||| 116
|||| |||| |||| |||| |||| |||| |||112
|||| |||| |||| |||| |||| |||| ||108
|||| |||| |||| |||| |||| |||| |104
|||| |||| |||| |||| |||| |||| 100
|||| |||| |||| |||| |||| |||96
|||| |||| |||| |||| |||| ||92
|||| |||| |||| |||| |||| |88
|||| |||| |||| |||| |||| 84
|||| |||| |||| |||| |||80
|||| |||| |||| |||| ||76
|||| |||| |||| |||| |72
|||| |||| |||| |||| 68
|||| |||| |||| |||64   Single End-user LAN (default prefix size for SLAAC)
|||| |||| |||| ||60   Some (very limited) 6rd deployments (/60 = 16 /64)
|||| |||| |||| |56   Minimal end sites assignment<ref name=rfc6177/> (e.g. Home network) (/56 = 256 /64)
|||| |||| |||| 52   (/52 = 4096 /64)
|||| |||| |||48   Typical assignment for larger sites (/48 = 65536 /64)
|||| |||| ||44
|||| |||| |40
|||| |||| 36   possible future Local Internet registry extra-small allocations
|||| |||32   Local Internet registry minimum allocations
|||| ||28   Local Internet registry medium allocations
|||| |24   Local Internet registry large allocations
|||| 20   Local Internet registry extra large allocations
|||16
||12   Regional Internet Registry allocations from IANA<ref>IANA IPv6 unicast address assignments</ref>
|8
4
